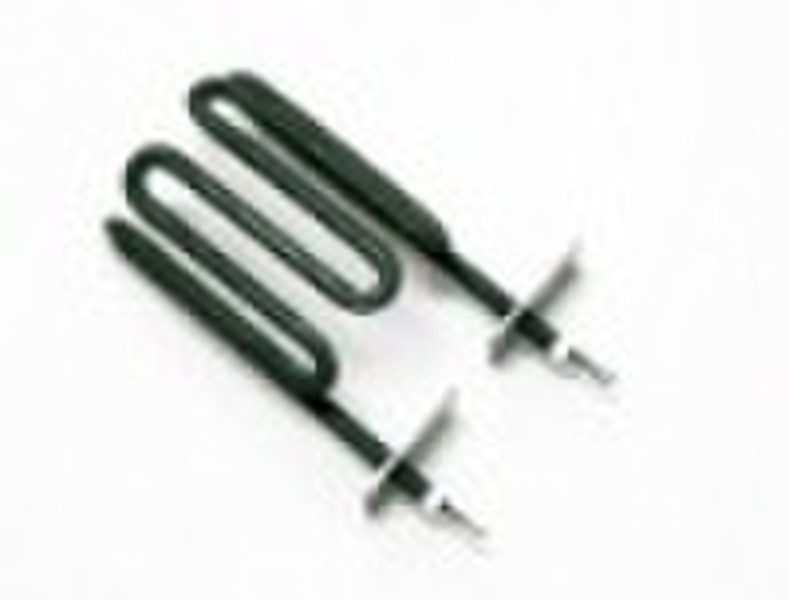

electric heating tube

Electric heating tubeFeatures:• Elements can be formed into almost any configuration• Wide variety of wattages and voltages• Wide variety of temination types• Wide variety of sheath material• Finned sheath optional• High purity compacted MGO provides maximum heat conductivity• Integral cold pins provides optimum in-current carrying capacity.• Optional end sealsProduct standard: Power-5% - 10%Resistance-5% - 10%Max. Dielectric strength1500 VInsulation (cold 1000 Vdc)> 200 MΩLeakage current (cold)< 0.5 mAMaximum working temperature750 °CLength tolerance± 2% (min. ± 2 mm)
